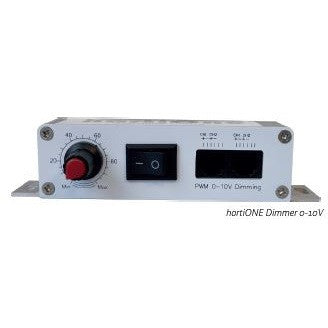

LED dimmer for 0 / 1-10V dimmable LED driver. No

separate power supply is required. A 1-10V signal is

generated. Plug & Play for all models of the hortiONE

V2 series. Several dimmers can be connected to

each other with an RJ11 / 12 telephone cable.

Longer: 94 cm → Even more homogeneity in large areas

LED arrangement: more LEDs on the edge for even more even uniformity

Higher efficacy: 2.9 µmol/J – for every watt used, you get even more light (PPF)

Improved Spectrum for Bloom

More power: 220W → 600µmol/s

All drivers with 12V Aux. Power supply for external controllers

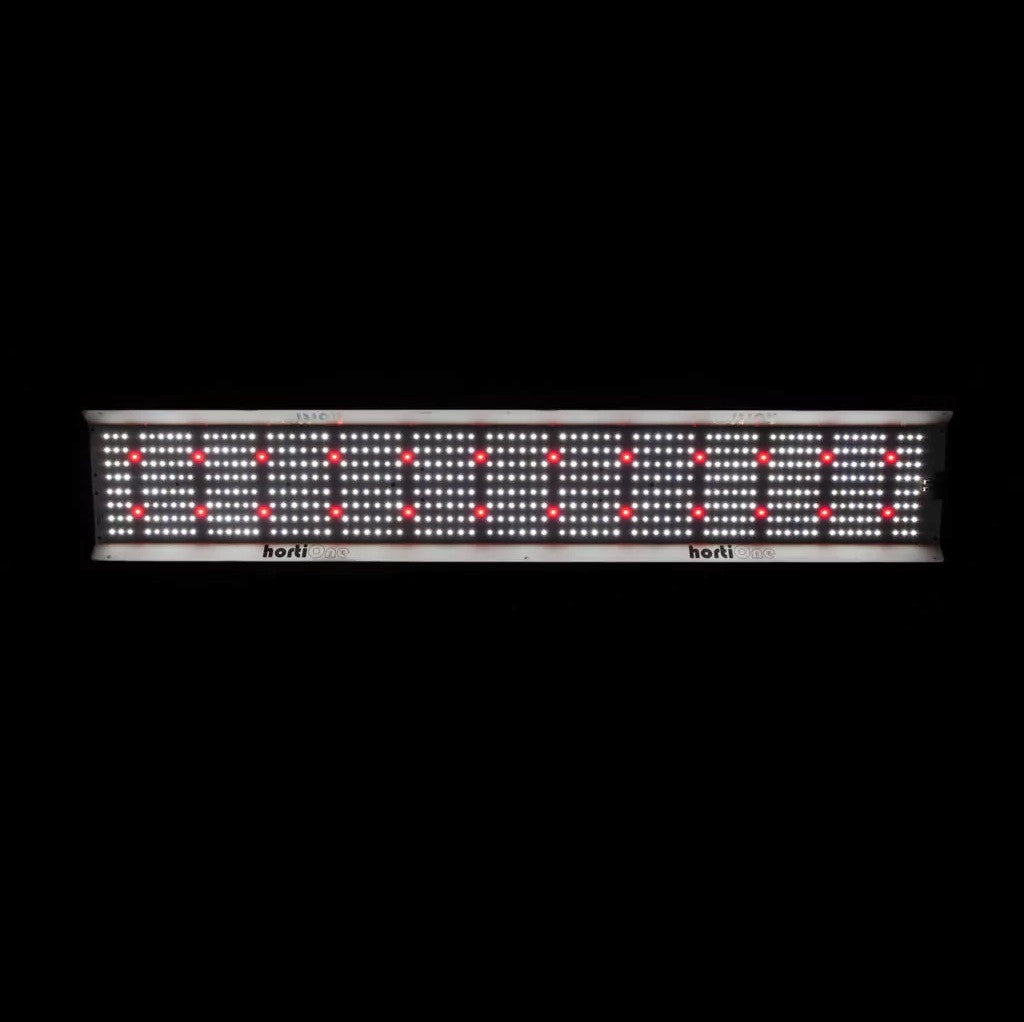

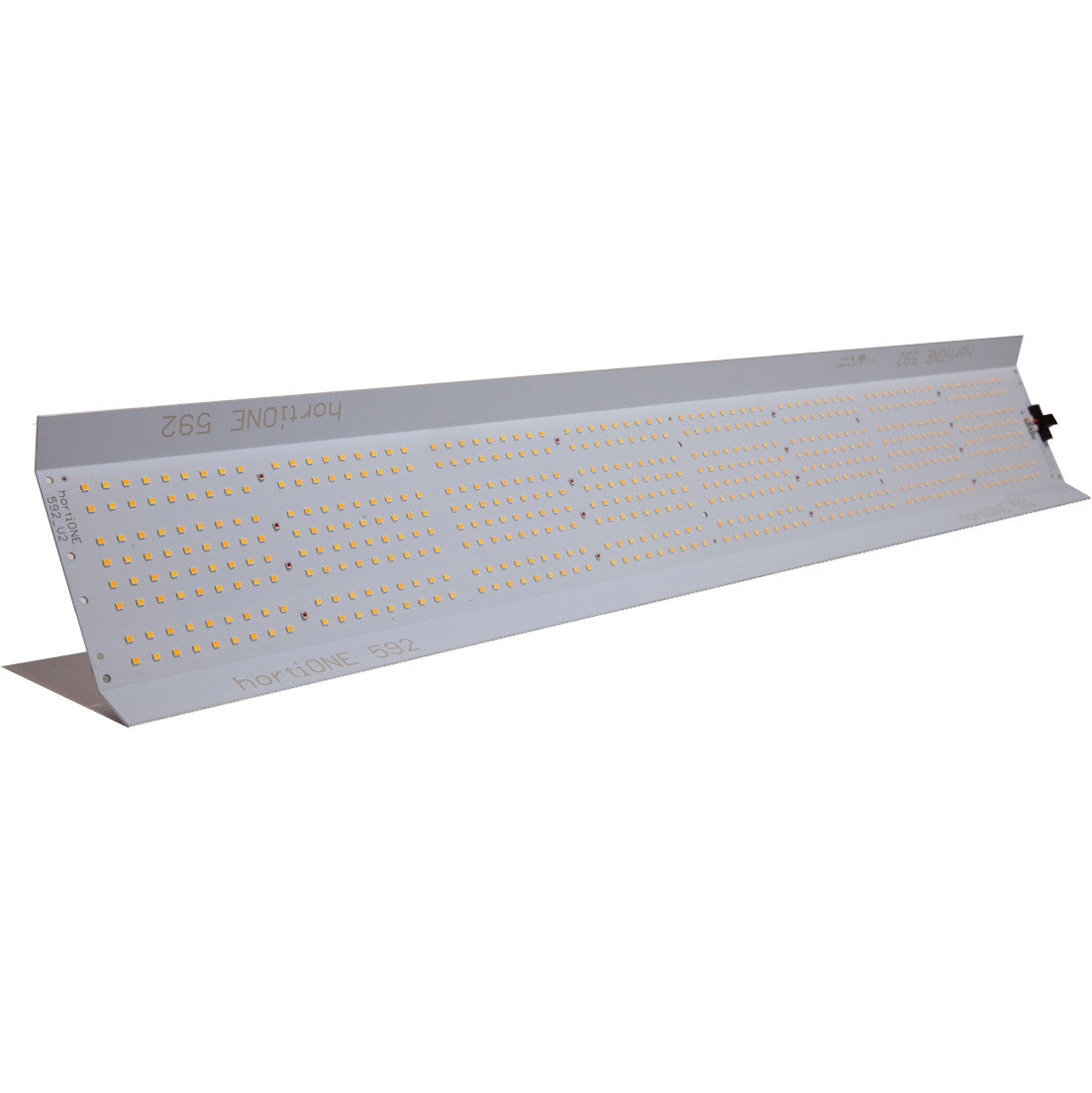

Key Features: hortiONE 592

Very Loooooong Single LED PANEL

45° Angled Reflector

Supports diffuse light

Homogen light distribution

592 LEDS

576 MID-POWER LEDS – Seoul Semiconductor (SSC) 3030C – 3500k

16 x OSRAM OSLON Hyper red 660nm

Dimming

2,7 µmol/J when the module runs at the full 190W . Diming increases the Efficacy up to 3.0µmol/J

High Reliability and Lifetime

Highes Resistancy against Sulfur and VOCS

LM90: 50.000h. Lifetime until 90% light output is reached
